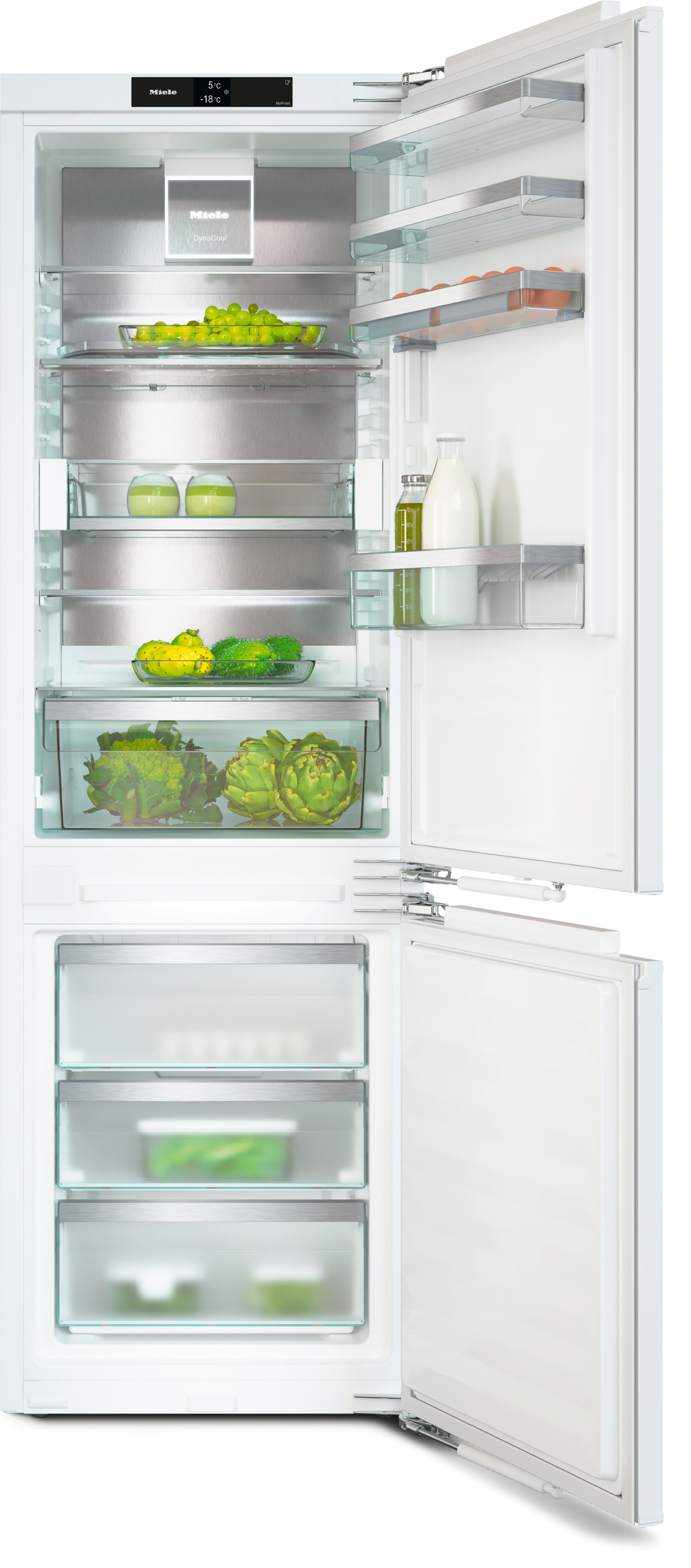

Built-in fridge-freezer, 178 cm niche heightDIAMOND

KFNS 7784 D

FlexiLight 2.0, DynaCool, NoFrost and FlexiTray for maximum convenience.
sale priceINR509,990.00


Product details

  • Spacious drawer with moisture control –
    DailyFresh
  • Individually adjustable glass shelf lighting with
    FlexiLight 2.0
  • No icing up of food and no need to defrost thanks to
    NoFrost
  • Uniform temperature distribution inside the appliance –
    DynaCool
  • Easy to remove items thanks to pivotable glass shelf –
    FlexiTray
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier KFNS 7784 D
Manufacturer material number 11738320
EAN number 4002516420774
Marketing class
Diamond
Fridge-freezer
Built-in appliance
Integrated appliance
Door hinge right
Convertible door hinging
Side-by-side enabled
Refrigeration section lighting
FlexiLight 2.0
Freezer compartment lighting LED
Fan lighting
Networking with Miele@home
Freshness system
DailyFresh
Fine adjustment inner door
ComfortClean
ComfortSize
DynaCool
NoFrost
DuplexCool
VarioRoom
SoftClose
Operating concept FreshTouch
Fridge compartment can be switched off Yes
Independent temperature regulation of fridge and freezer zones
SuperCool
SuperFreeze
No. of temperature zones 2
Sabbath mode
Party mode
Holiday mode
No. of shelves 5
of which illuminated 2
No. of crisper drawers 1
Dry back wall
CleanSteel
FlexiTray
Number of inner door racks for tinned food 3
Door rack for bottles 1
Door shelves 4
Number of freezer drawers 3
of which on runners 2
Lock function
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Power cut indication for freezer section
Niche width in mm min. 560
Niche width in mm max. 570
Niche height in mm min. 1772
Niche height in mm max. 1788
Niche depth in mm 550
Appliance dimensions (W x H x D) in mm 559 x 1770 x 544
Appliance width in mm 559
Appliance height in mm 1770
Appliance depth in mm 544
Weight in kg 76.3
Door hinge technology Fixed door
Climate class SN-T
Refrigerator compartment in l 184
4* freezer compartment in l 70
Total usable capacity in l 254
Sound emissions in dB(A) re 1 pW 34
Current consumption (mA) 1400
Voltage in V 220-240
Fuse rating in A 10
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 2.2
Replacing lamps Service
Egg tray
EAN 4002516420774

What's included

Egg tray
  • Cleverly networked

    Cleverly networked

    Miele@home1,

    Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.

  • A perfect view of your food

    A perfect view of your food

    FlexiLight 2.0

    Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.

  • Overview of food; easy to remove items

    Overview of food; easy to remove items

    FlexiTray pivotable glass shelf

    Maximum convenience: the pivotable glass shelf allows items to be removed easily, even from a full refrigerator.

  • Maximum flexibility

    Maximum flexibility

    Fine adjustment on inner door

    Adaptable: the position of the inner door shelves can be adjusted to make the best use of space.

  • Ideal cooling distribution with an appealing design

    Ideal cooling distribution with an appealing design

    CleanSteel rear panel

    Clean and cool: the CleanSteel rear panel ensures excellent cooling distribution in Miele refrigerators.

User convenience

Cleverly networked
Cleverly networked

Miele@home1,

Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
A perfect view of your food
A perfect view of your food

FlexiLight 2.0

Entirely glare-free: the illuminated shelves can be custom-positioned in the refrigerator for maximum flexibility.
Overview of food; easy to remove items
Overview of food; easy to remove items

FlexiTray pivotable glass shelf

Maximum convenience: the pivotable glass shelf allows items to be removed easily, even from a full refrigerator.
Maximum flexibility
Maximum flexibility

Fine adjustment on inner door

Adaptable: the position of the inner door shelves can be adjusted to make the best use of space.
Defrosting is a thing of the past
Defrosting is a thing of the past

NoFrost

Save yourself the hassle of defrosting thanks to the recirculating air cooling system, which prevents ice from forming.
Ideal storage conditions for food and wine
Ideal storage conditions for food and wine

DynaCool

Even temperature distribution: a fan ensures excellent circulation and distribution of the cold air.
Dishwasher-safe door shelves
Dishwasher-safe door shelves

ComfortClean

The high-quality door shelves are easy to clean in the dishwasher.
Appliance door closes softly
Appliance door closes softly

SoftClose

Quiet and reliable closing: the gently self-closing doors prevent items from falling out.
Convenient food storage
Convenient food storage

ComfortSize

Practical storage: the extensive depth allows an entire baking tray to be stored in the refrigeration appliance.

Convenience features

Improved freshness for fruit and vegetables
Improved freshness for fruit and vegetables

DailyFresh

Keep fruit and vegetables fresh up to twice as long in the spacious drawers with ideal humidity.

Design

Ideal cooling distribution with an appealing design
Ideal cooling distribution with an appealing design

CleanSteel rear panel

Clean and cool: the CleanSteel rear panel ensures excellent cooling distribution in Miele refrigerators.

Matching products and accessories

Built-in freezer, 178 cm niche height
FNS 7740 F

Built-in freezer, 178 cm niche height

with Frost free and eight freezer drawers for maximum convenience.

INR399,990.00

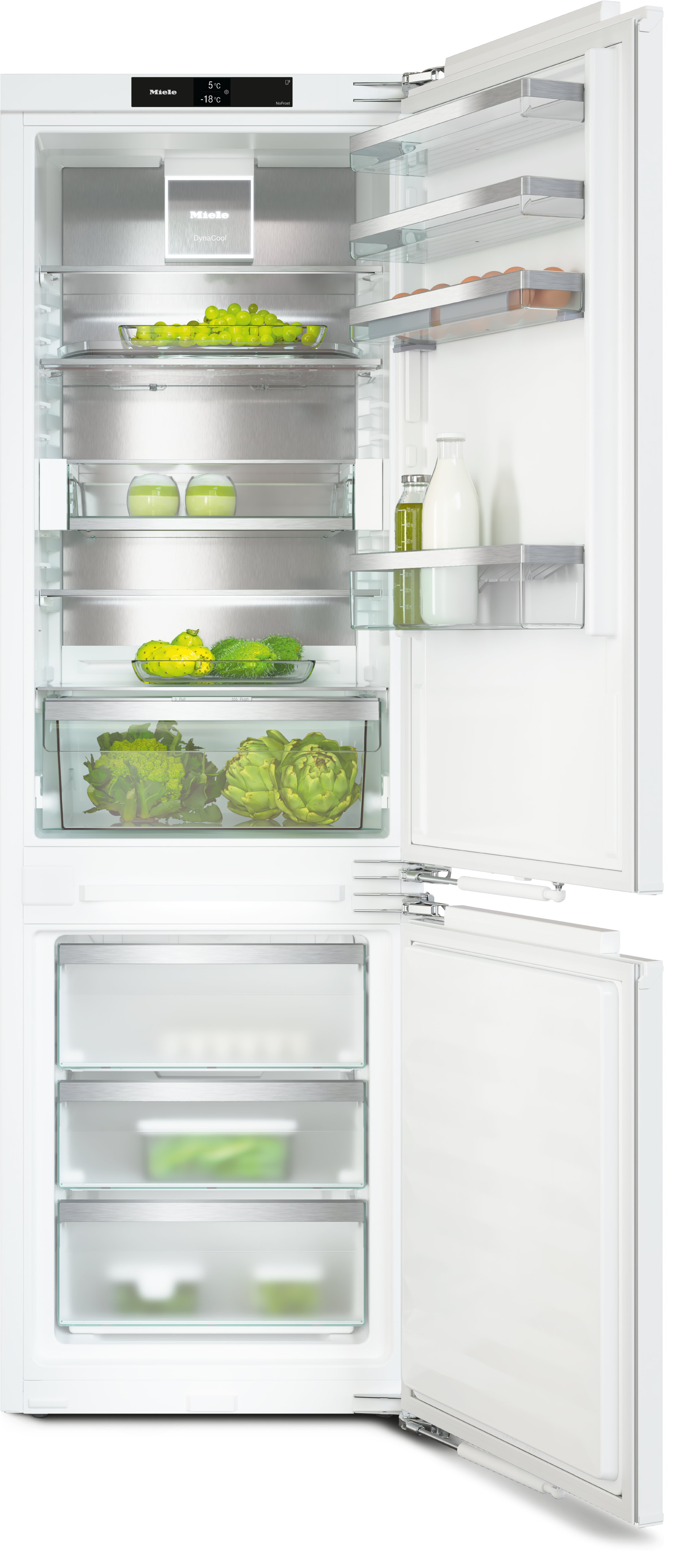

Built-in fridge-freezer, 178 cm niche height
