Gas hobSILVER
KM 3014
with 3 burners incl. dual wok for particularly versatile cooking convenience.sale priceINR165,990.00
Product details

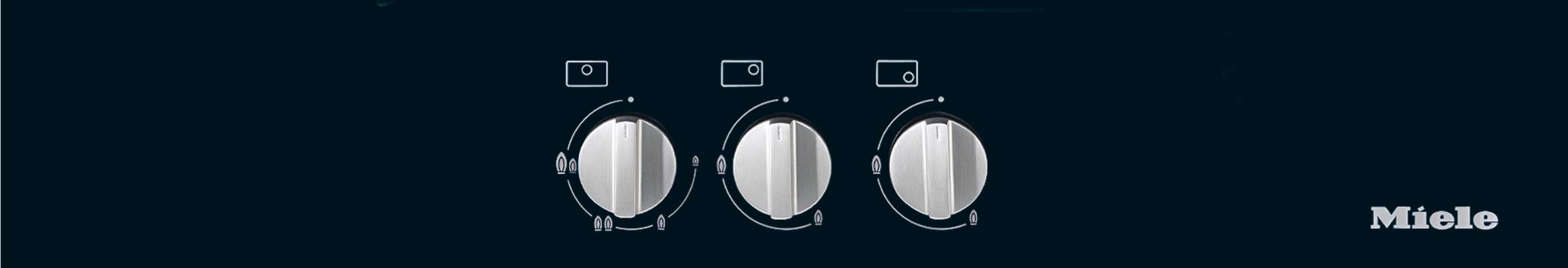

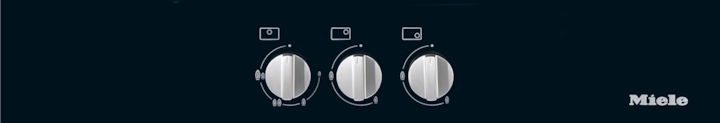

- Simple controls -single-handed operation via rotary dial control

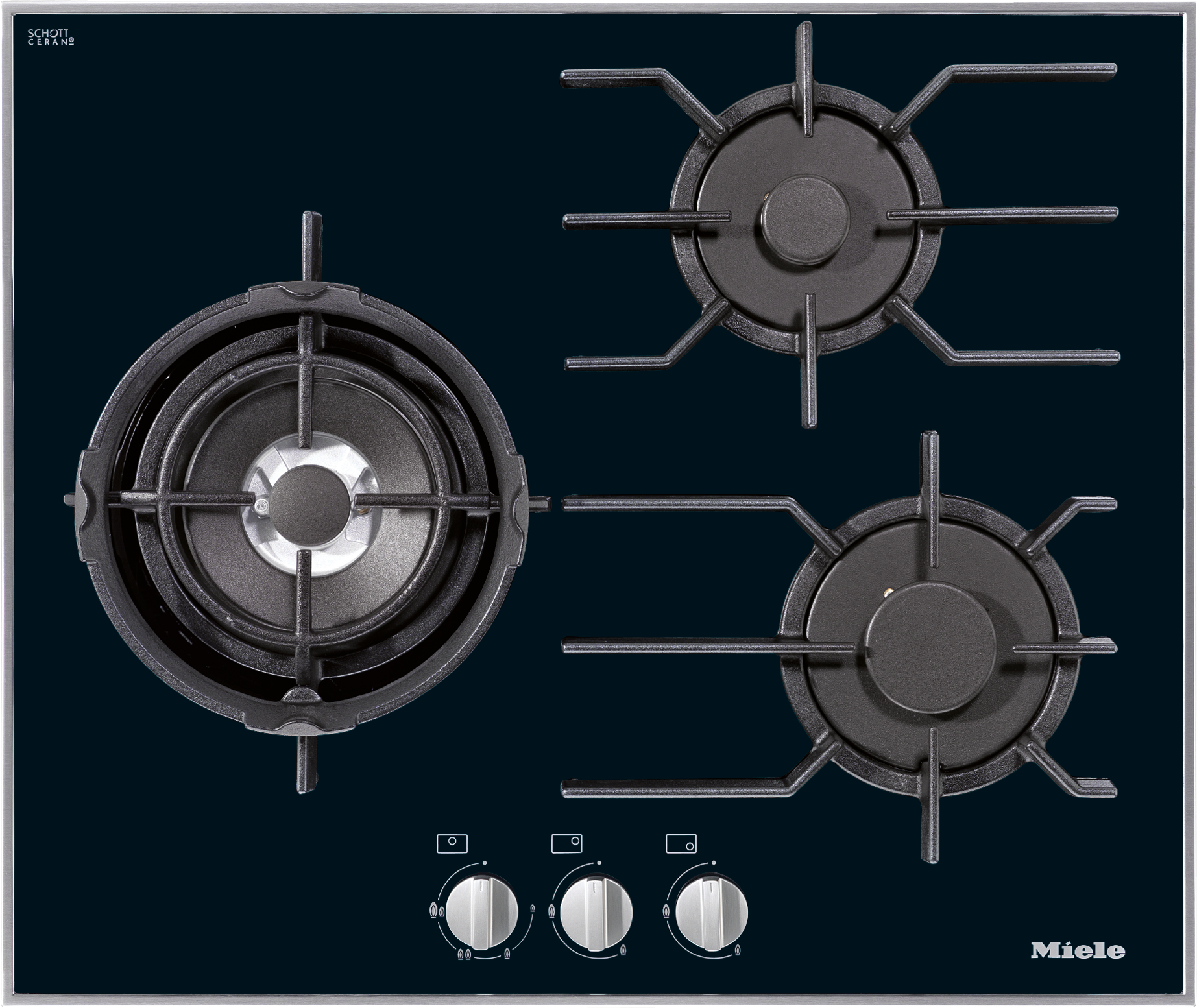

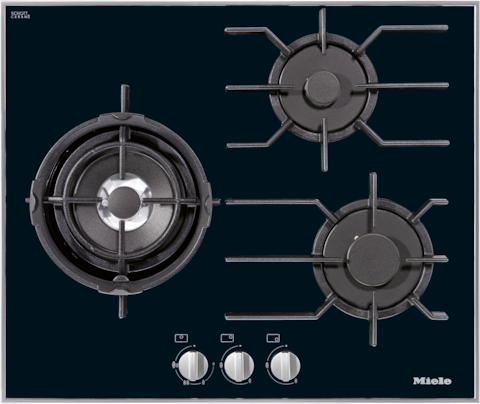

- Elegant design – 626 mm wide gas hob on glass for surface-mounted installation
- Particularly versatile - 3 burners incl. 1 dual wok
- Extremely safe -GasStop functionLoading...
- Easy cleaning - dishwasher-safe ComfortClean pot rests
- View manufacturer details:
- Safety Information
Model identifier KM 3014
Manufacturer material number 09233820
EAN number 4002515134900
Marketing class Silver
Loading...
Heating type Gas
Independent of cooker
Elegant glass ceramic surface
Cast iron pot rests (matt black enamelled)
Loading...
Miele logo embossed in stainless steel
Number of cooking zones 3
Small burner in kW 1.30
Medium burner in kW 2
Dual wok burner in kW 5
Position left centre
Type Dual wok burner
Position rear right
Type Economy burner
Position front right
Type Standard burner
Operation via sensor controls Knob
Operation via knobs
Electronic ignition with single-hand operation
Loading...
Easy to clean ceramic glass
Loading...
Dishwasher-proof pot rests
Loading...
GasStop
Loading...
GasStop & ReStart
Loading...
Dimensions (H x W x D) in mm 53 x 626 x 526
Dimensions (W x D) in mm 626 x 53 x 526
Dimensions in mm (width) 626
Dimensions in mm (height) 53
Dimensions in mm (depth) 526
Cut-out dimensions (W x D) with surface-mounted installation in mm 600 mm x 500 mm
Casing height incl. connection box in mm 63
Cutout dimensions in mm (width) with surface-mounted installation 600 mm
Cutout dimensions in mm (depth) with surface-mounted installation 500 mm
Weight in kg 14
Total rated load in kW 7.500
Position of gas connection Hinten links
Voltage in V 220-240
Frequency in Hz 50-60
Length of supply lead in m 1.4
Jets for liquid gas
Wok ring
Small trivet
EAN 4002515134900
Jets for liquid gas
Wok ring
Small trivet
Efficiently protects and makes cleaning easier
ComfortClean pot rests
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Automatic reignition for extra safety
GasStop & ReStart
Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.
Perfect wok kitchen with gas hobs
Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.
The innovative
Gas hobs with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.
Wok burner
Professional: mono or dual wok burner for uniform and/or separate power regulation of both flame rings.Gas hobs with electronic controls
More safety and convenience: Intelligent features make cooking with gas a great choice.ComfortClean pot rests
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.
Enamelled pot rests and burner parts
Nothing lasts longer and is easier to clean: enamelled cast-iron pot rests and burners with PerfectClean.GasStop & ReStart
Safe cooking: Automatic re-ignition for flame failure Should this prove unsuccessful, the gas supply is turned off immediately.
GasStop
Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.
Electronic ignition and single-handed controls
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Front knob controls
Easy controls to regulate: Convenient power level control via plastic or metal knobs.
Individual design
Attractive design to suit all tastes: a minimalist stainless-steel look or elegant ceramic glass.Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
1. Front, 2. Casing depth, 3. Mains connection box with mains connection cable L = 2000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226)
1. Front, 2. Casing depth, 3. Mains connection box with mains connection cable L = 2000 mmm, 4. Gas connection R 1/2" - ISO 7-1 (DIN EN 10226) POSTSCRIPT
