Wall mounted cooker hoodGold

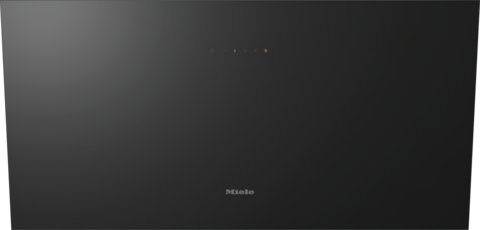

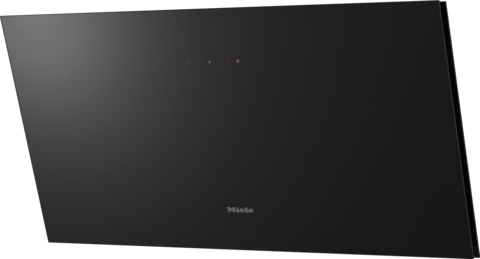

DAH 2960 Escala Obsidian black

with Con@ctivity and smart touch controls for convenience
Colour:Obsidian black
sale priceINR199,990.00


Product details

  • Lots of headroom – with glass canopy 898 mm wide
  • Unique user convenience –
    Con@ctivity
  • Efficient filtration-
    10-ply stainless-steel grease filter
  • Perfect match – glass panel and canopy in the same colour
  • Suitable for every home - for extraction or recirculation
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
DAH 2960 Escala
Manufacturer material number
12545640
EAN number
4002516801504
Marketing class
Gold
Wall mounted cooker hood
Type of air guide
Can be retrofitted
Active charcoal filter (order separately)
DKF 29
Colour
Obsidian black
Edge extraction
Miele@home
Con@ctivity
Yes
Electronic controls
Touch-on-glass controls
Controls
ComfortControl
ON/OFF switch
Power levels (number without Booster level)
3
Booster levels
1
Easy-to-clean canopy interior – CleanCover
AutoRefresh
Push notifications
RemoteUpdate
Smart Home Integration
Energy efficiency class (A+++ to D)
B
Annual energy consumption in kWh/year
72.3
Fluid dynamic efficiency class
B
Lighting efficiency class
A
Grease filtering efficiency class
D
Number of dishwasher-safe stainless steel grease filters (10-ply)
2
Number x W
1 x 3,2 W
Light intensity in Lx
300 lx
Colour temperature in K
3500 Kelvin
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591
215
Air throughput in Level 2 (m³/h) according to EN 61591
315
Air throughput in Level 3 (m³/h) according to EN 61591
415
Air throughput in Booster level 1 (m³/h) according to EN 61591
675
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
41
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
47
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
53
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
65
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
27
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
33
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
39
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
51
Air throughput in Level 1 (m³/h) according to EN 61591
190
Air throughput in Level 2 (m³/h) according to EN 61591
280
Air throughput in Level 3 (m³/h) according to EN 61591
380
Air throughput in Booster level 1 (m³/h) according to EN 61591
575
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
47
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
54
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3
60
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3
71
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
33
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
40
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
46
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13
57
Safety shut-off
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm
898 x 443 x 388
Overall height for vented and external in in. (mm)
830
Overall height for extraction mode and external mode cooker hoods in mm
1210
Overall height for recirculation in in. (mm)
443
Overall height for recirculation mode cooker hoods in mm
443
Canopy width in in. (mm)
898
Canopy height in in. (mm)
443
Depth of hood canopy in in. (mm)
388
Minimum height above electric hobs in mm
450
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm
650
Net weight in kg
18
Length of supply lead in m
1.3
Standard plug fitted
Total rated load in kW
0.203
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm
150
Non-return flap
EAN
4002516801504

What's included

Non-return flap
  • *This is a separate digital offer from Miele & Cie. KG. The range of functions can vary depending on the model and the country. Acceptance of the Terms and Conditions and Privacy Policy for Miele digital products and services in the Miele app required. Miele reserves the right to change or discontinue the digital offer at any time.
  • More convenience when cooking
    More convenience when cooking

    Con@ctivity

    The cooker hood reacts automatically to the hob and the oven.

  • Easy to use and effective against grease
    Easy to use and effective against grease

    Stainless steel grease filters (10-layer)

    Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.

  • Convenience and safety in detail
    Convenience and safety in detail

    Miele CleanCover

    Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.

  • Decorative panels instead of metal grease filters
    Decorative panels instead of metal grease filters

    Edge extraction

    Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.

Features

Easy to use and effective against grease
Easy to use and effective against grease

Stainless steel grease filters (10-layer)

Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Convenience and safety in detail

Miele CleanCover

Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Decorative panels instead of metal grease filters
Decorative panels instead of metal grease filters

Edge extraction

Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.

Safety

Always on the safe side
Always on the safe side

Safety switch-off

Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.

User convenience

More convenience when cooking
More convenience when cooking

Con@ctivity

The cooker hood reacts automatically to the hob and the oven.

Smart Extras

  • Always up to date with software updates
    Always up to date with software updates

    RemoteUpdate1,

    Bringing new functions directly to your appliance.

  • A fresh indoor climate at all times
    A fresh indoor climate at all times

    AutoRefresh1,

    Unpleasant odours are removed from the room air at adjustable intervals.

  • Everything at a glance with smart notifications
    Everything at a glance with smart notifications

    Push notifications1,

    Receive relevant information directly on your smartphone or tablet.

  • Seamless networking throughout your home
    Seamless networking throughout your home

    Smart Home Integration1,

    Intelligent integration of Miele appliances into a Smart Home system.

Downloads

Installation plan
PDF
Download
Operating instructions/Installation instructions
PDF
Download
Warranty conditions
PDF
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/dam/1c4c7d97-1b8b-43ad-b312-b3bb00207545/20000205751_HighresDigitalRGB.png
Descriptions
DAH2960 Installation drawings
1) Break-through if the mains connection is not made with a mains plug, but with a fixed connection., 2) Exhaust air opening ø 200 mm, so that the exhaust air line can be moved in the wall. Exhaust air connection ø 150 mm to the top or alternatively to the rear., 3) Air outlet for recirculated air. The distance to the ceiling or furniture mounted above the unit should be at least 300 mm.
