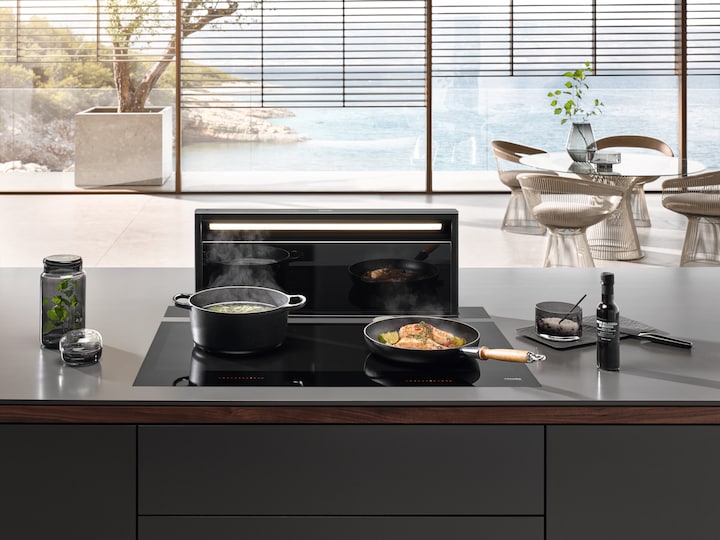

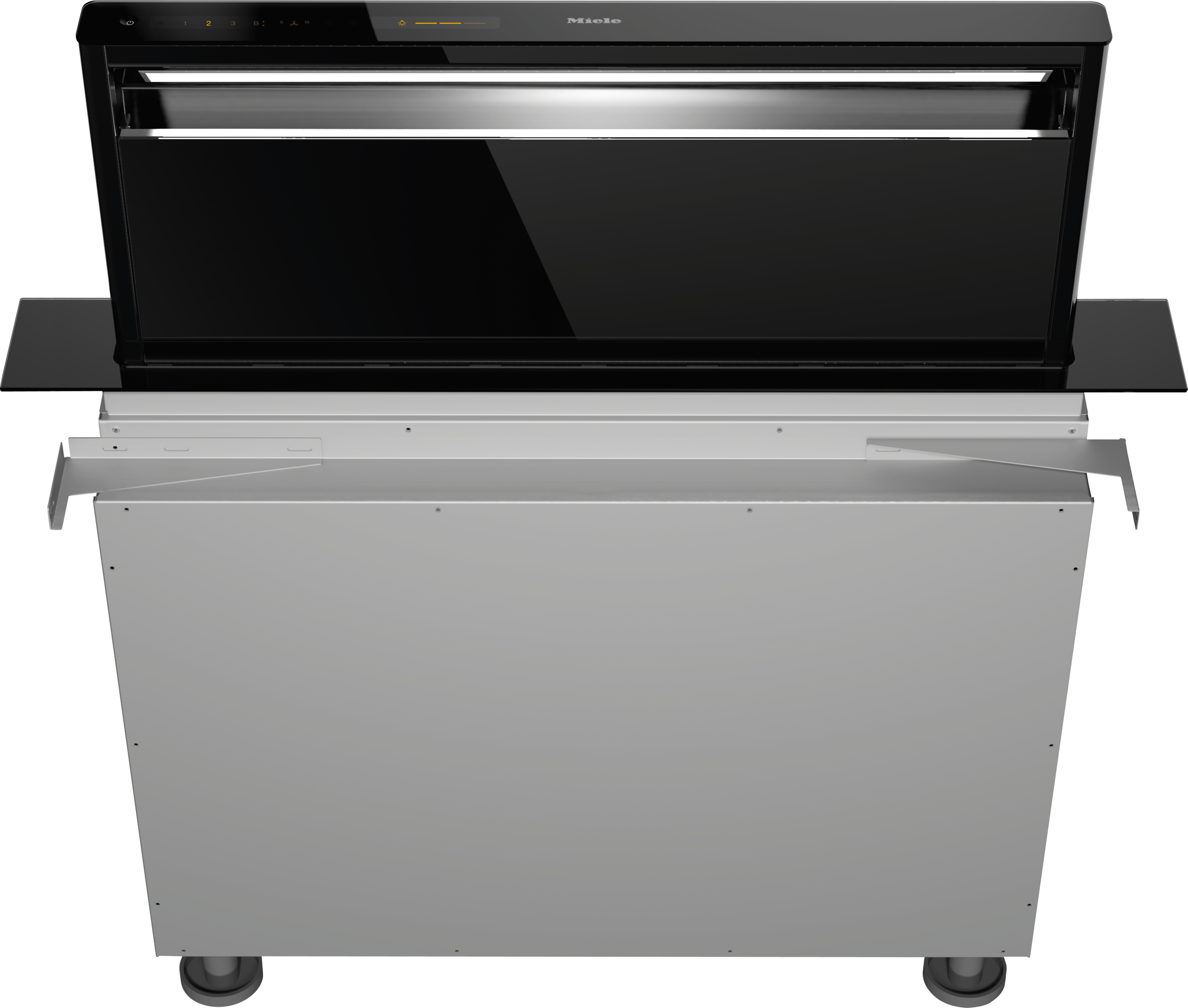

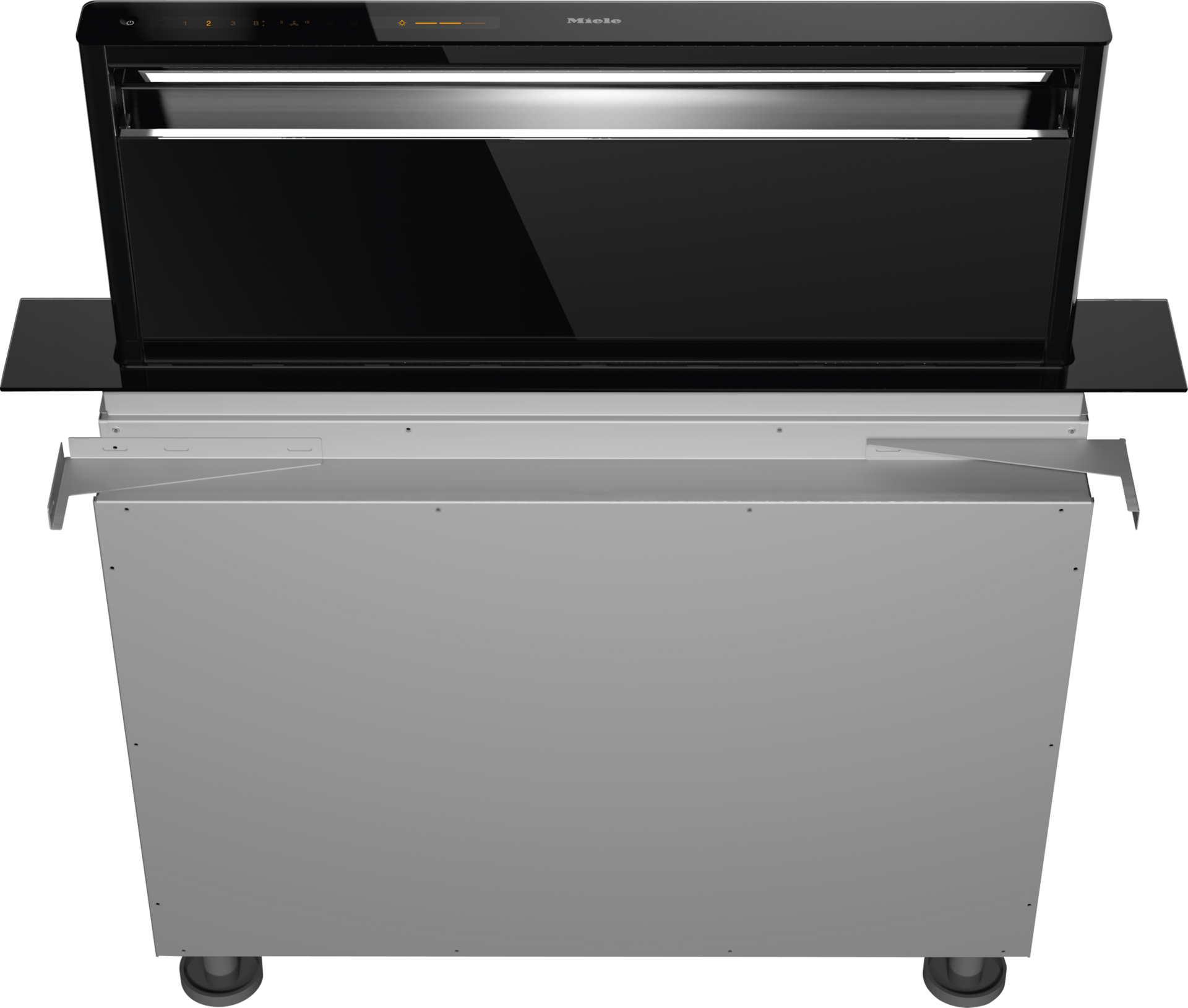

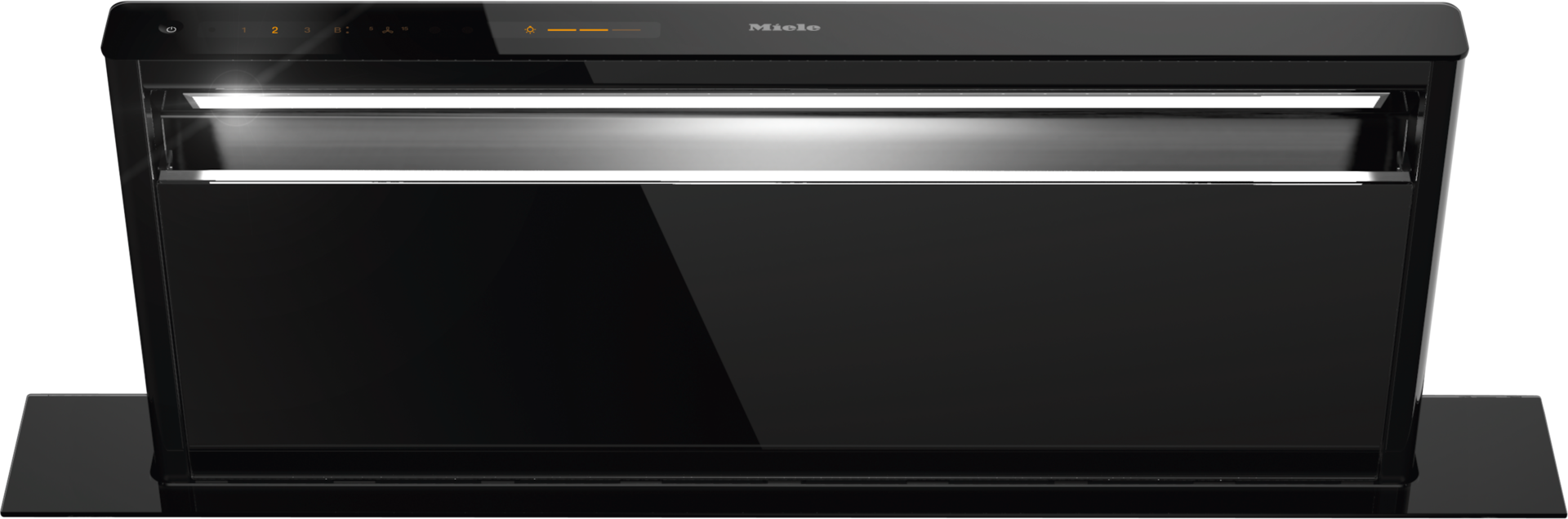

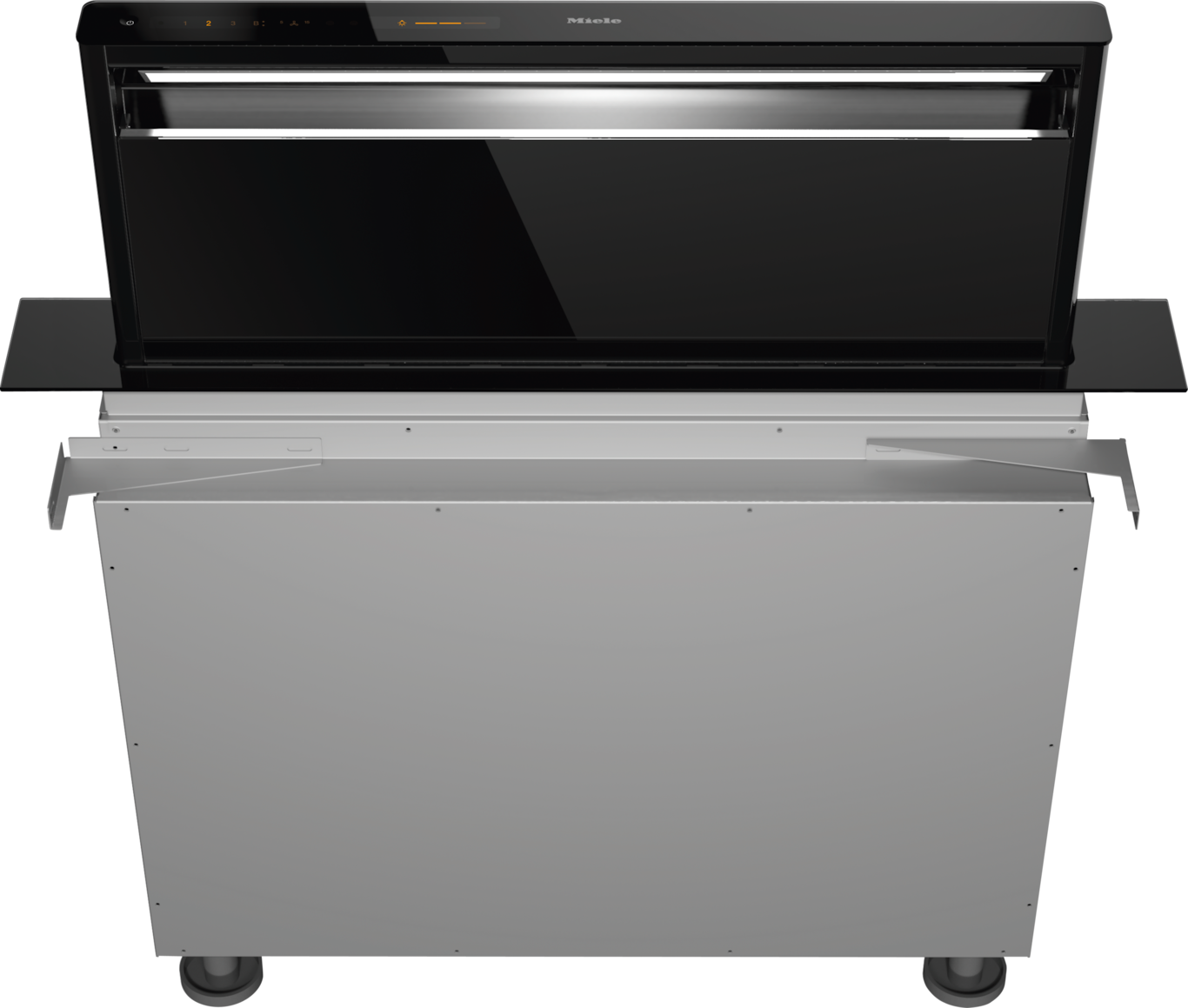

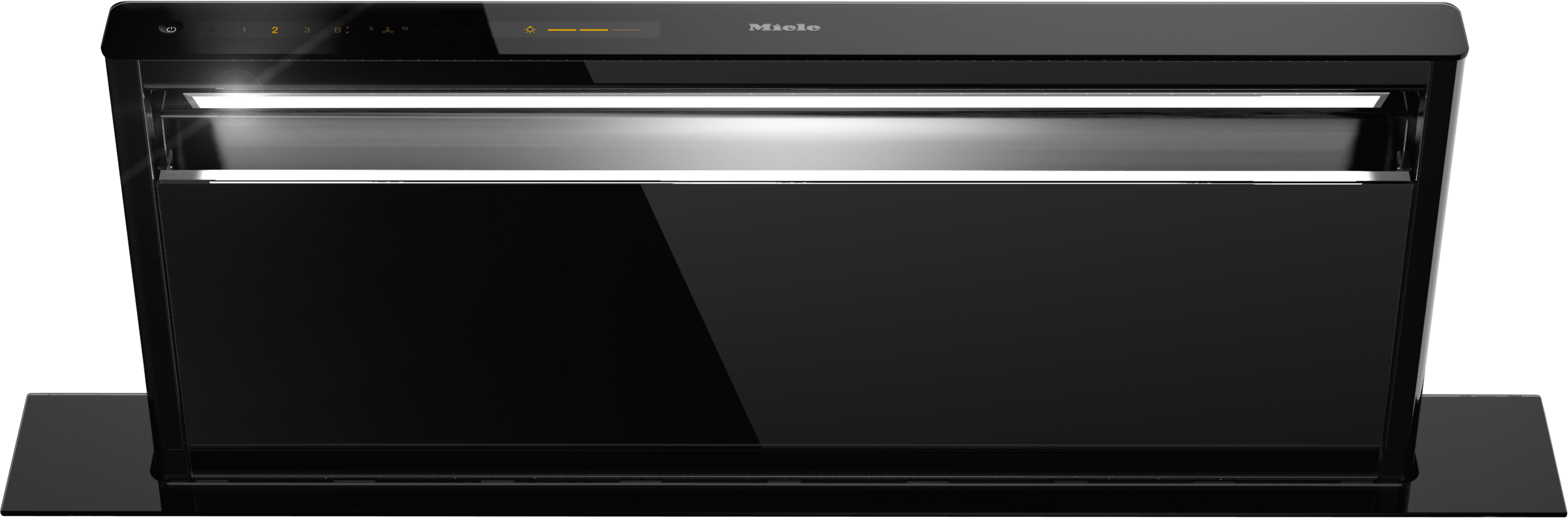

Downdraft extractorGOLD
DAD 4941 Black Levantar Obsidian black
in an elegant obsidian black design and with intuitive SmartControl operationColour:Obsidian black
sale priceINR456,990.00
Product details
- 936 mm wide – the perfect combination withinduction hobsLoading...
- Easy recirculation mode installation withplug&play accessory setLoading...

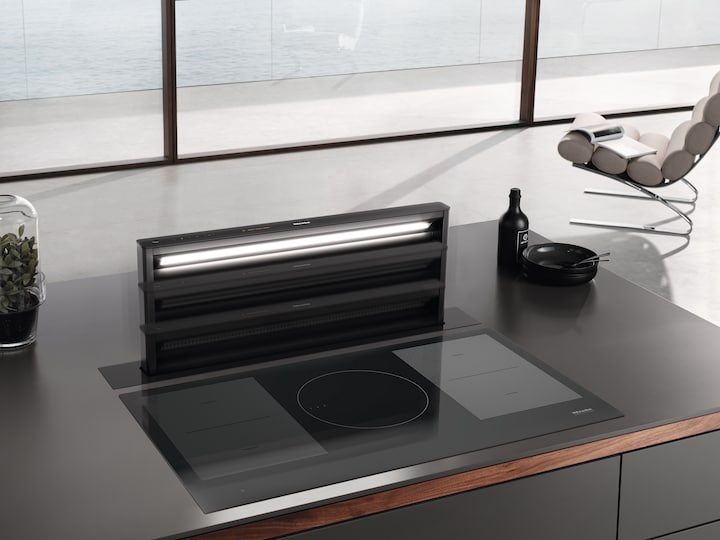

- Motorised retractable deflector plate –Hood in MotionLoading...
- Unique user convenience –Con@ctivityLoading...
- Efficient filtration-10-ply stainless-steel grease filterLoading...
- View manufacturer details:
- Safety Information
Model identifier DAD 4941 Black Levantar
Manufacturer material number 12428820
EAN number 4002516761662
Marketing class Gold
Loading...
Downdraft extractor
Type of air guide Can be retrofitted
Recirculation conversion kit (order separately) DUP 150,DUU 600
Active charcoal filter (order separately) [
"DKF 30-P",
"DKF 30-R"
]
Colour Obsidian black
Edge extraction
Miele@home
Con@ctivity Yes
Electronic controls
Touch-on-glass controls
Controls SmartControl
Power levels (number without Booster level) 3
Booster levels 2
Run-on time 5/15 min.
Loading...
Grease filter saturation indicator
Active charcoal filter saturation indicator
Motor-operated cooker hoods
Easy-to-clean canopy interior – CleanCover
Loading...
Energy efficiency class (A+++ to D) A
Annual energy consumption in kWh/year 41.6
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class B
Loading...
ECO motor (DC motor)
Loading...
PowerManagement system
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 2
Loading...
Number x W 1 x 11,2 W
Light intensity in Lx 400 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 200
Air throughput in Level 2 (m³/h) according to EN 61591 340
Air throughput in Level 3 (m³/h) according to EN 61591 440
Air throughput in Booster level 1 (m³/h) according to EN 61591 600
Air throughput in Booster level 2 (m³/h) according to EN 61591 640
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 44
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 57
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 62
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 70
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 72
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 43
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 49
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 56
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 58
Air throughput in Level 1 (m³/h) according to EN 61591 160
Air throughput in Level 2 (m³/h) according to EN 61591 320
Air throughput in Level 3 (m³/h) according to EN 61591 415
Air throughput in Booster level 1 (m³/h) according to EN 61591 520
Air throughput in Booster level 2 (m³/h) according to EN 61591 555
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 50
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 64
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 69
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 75
Sound power in Booster level 2 (dB(A) re 1 pW) acc. to EN 60704-3 76
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 37
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 50
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 56
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 61
Sound pressure in Booster level 2 (dB(A) re 20 µPa) acc. to EN 60704-2-13 62
Safety shut-off
Loading...
Single-ply safety glass (ESG)
Canopy dimensions (W x H x D) in mm 936 x 638 x 170
Canopy width in in. (mm) 936
Canopy height in in. (mm) 638
Depth of hood canopy in in. (mm) 170
Net weight in kg 34
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.251
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Diameter of extraction ducting connection in mm 150
Optimum combination with hob subject to availability KM 7697 FL; KM 7594 FL
Bottom exhaust duct
EAN 4002516761662
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Elegant touch controls
SmartControl
High-quality and functional: enjoy convenient touch controls with a dimmer function.
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Edge extraction
Efficient and good-looking: with edge extraction, the grease filters are covered by a panel.
Longlife AirClean filter
Efficient odour neutralisation: durable, as the active charcoal filter can be regenerated in the oven.
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Hood in motion
Best possible ergonomics: The cooker hood canopy automatically moves to the ideal working position.SmartControl
High-quality and functional: enjoy convenient touch controls with a dimmer function.Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres. POSTSCRIPT
Descriptions
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres. POSTSCRIPT
Descriptions
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres. POSTSCRIPT
Descriptions
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres.
① Only required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used., ② Exhaust air connection Ø 150 millimetres. POSTSCRIPT
Descriptions
1. Stepped cutout for flush-fit installation in stone worktops (granite, marble)., 2. Ensure that materials are sufficiently stable., 3. Cut-out off-centre., Exhaust duct Ø 150 mm., * Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used.
1. Stepped cutout for flush-fit installation in stone worktops (granite, marble)., 2. Ensure that materials are sufficiently stable., 3. Cut-out off-centre., Exhaust duct Ø 150 mm., * Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used. POSTSCRIPT
Descriptions
DAD4841, DAD4941, Installation drawings
DAD4841, DAD4941, Installation drawings POSTSCRIPT
Descriptions
① The minimum dimension is required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used.
① The minimum dimension is required if flat ducts are laid under the cabinets or the DUU 600 recirculation box is used. POSTSCRIPT
Descriptions
Installation of the downdraft hood and cooktop in separate cutouts., Surface-mounted installation, 1) Cutout for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., Exhaust air connection ø150 mm
Installation of the downdraft hood and cooktop in separate cutouts., Surface-mounted installation, 1) Cutout for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., Exhaust air connection ø150 mm POSTSCRIPT
Descriptions
Installation of the downdraft hood and cooktop in separate cutouts., Flush installation., 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a countertop. Note the, the different milling widths for the hob and the downdraft. Instead of a step milling, a wooden strip offset 5.5 mm downwards can be installed as an alternative (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
Installation of the downdraft hood and cooktop in separate cutouts., Flush installation., 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a countertop. Note the, the different milling widths for the hob and the downdraft. Instead of a step milling, a wooden strip offset 5.5 mm downwards can be installed as an alternative (not included in the scope of delivery)., , Exhaust air connection ø 150 mm. POSTSCRIPT
Descriptions
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Surface-mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Surface-mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm. POSTSCRIPT
Descriptions
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm. POSTSCRIPT
Descriptions
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7684 FL or KM 7689 FL., Surface mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm.
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7684 FL or KM 7689 FL., Surface mounted installation, 1) Cut-out for exhaust air line in cabinet base., 2) Ensure sufficient stability of the worktop., , Exhaust air connection ø150 mm. POSTSCRIPT
Descriptions
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm.
Side-by-side installation of the downdraft hood and the cooktop in a common cutout., Example: combination with KM 7697 FL or KM 7594 FL., Flush installation, 1) Cut-out for exhaust air duct in the cabinet base., 2) Ensure sufficient stability of the worktop., 3) Step milling for flush mounting in a worktop. Note the, the different milling widths for the hob and the downdraft. , Instead of a step milling, a 5.5 mm downwardly offset wooden strip can be installed (not included in the scope of delivery)., , Exhaust air connection ø 150 mm. POSTSCRIPT
Descriptions
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm. POSTSCRIPT
Descriptions
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm. POSTSCRIPT
Descriptions
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm. POSTSCRIPT
Descriptions
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm.
① Only required when flat ducting is laid under cabinets or the DUU 600 recirculation box is used., ② Exhaust duct Ø 150 mm. POSTSCRIPT
We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
