SmartLine elementPlatinum

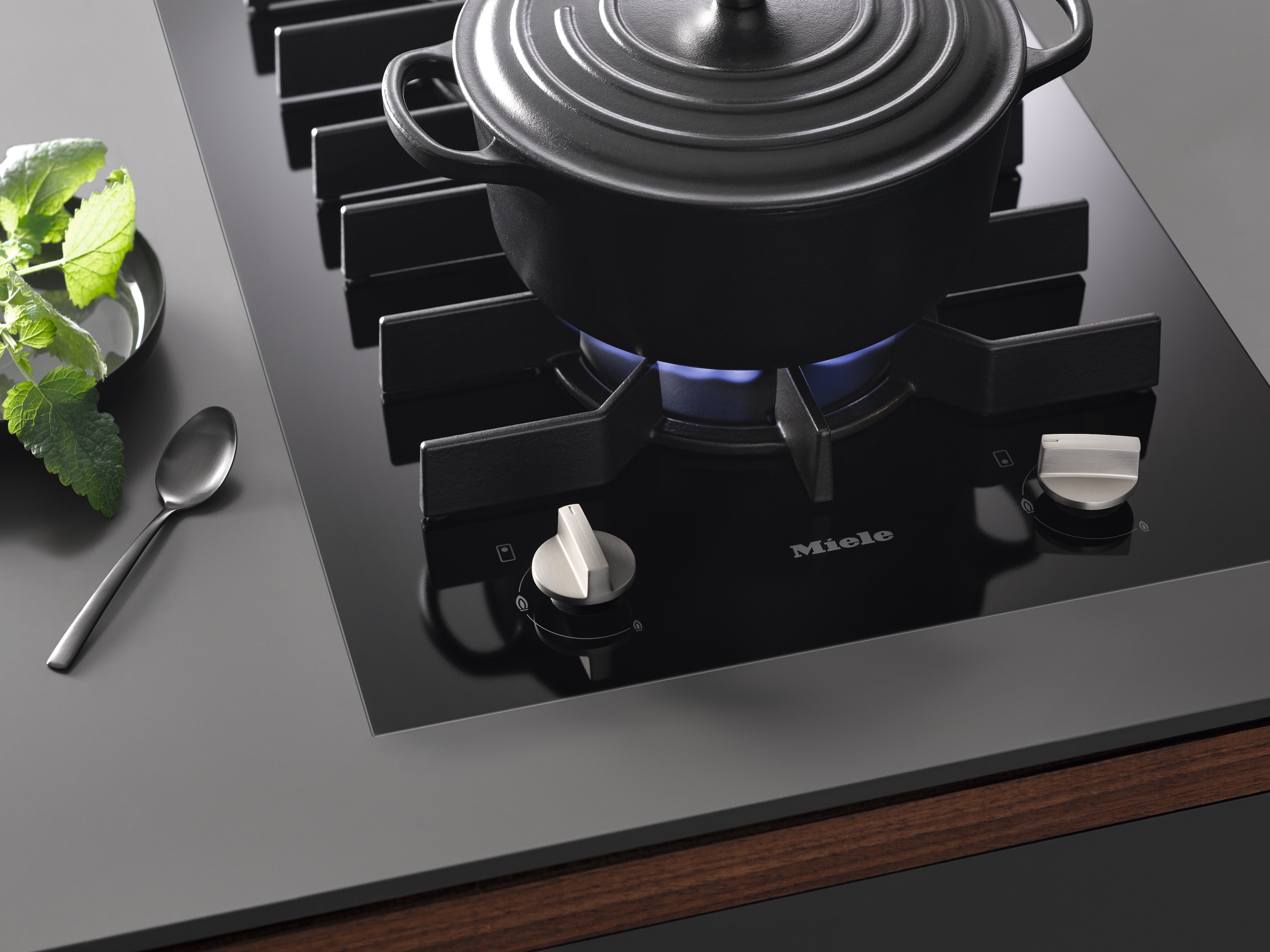

CS 7102-1 FL

with two burners
sale priceINR219,990.00


Product details

  • Simple controls -single-handed operation via rotary dial control
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any
    SmartLine element
  • Particularly versatile - 1 medium burner and 1 large burner
  • Easy cleaning - dishwasher-safe ComfortClean pot rests
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier
CS 7102-1 FL
Manufacturer material number
11402730
EAN number
4002516306252
Marketing class
Platinum
Heating type
Gas
SmartLine
Elegant glass ceramic surface
Ceramic surface colour
Black
Cast iron pot rests (matt black enamelled)
Flush
Surface-mounted installation
Number of cooking zones
2
Medium burner in kW
1.70
Large burner in kW
2.70
Position
front centre
Type
Standard burner
Size in mm
Ø 120-220
Max. rating in W
1700
Position
rear centre
Type
High-speed burner
Size in mm
Ø 140-240
Max. rating in W
2700
Operation via sensor controls
Knob
Operation via knobs
Electronic ignition with single-hand operation
Easy to clean ceramic glass
Dishwasher-proof pot rests
GasStop
Dimensions (W x D) in mm
378 x 92 x 520
Dimensions in mm (width)
378
Dimensions in mm (height)
92
Dimensions in mm (depth)
520
Cut-out dimensions (W x D) with surface-mounted installation in mm
358 mm x 500 mm
Casing height incl. connection box in mm
92
Cutout dimensions in mm (width) with surface-mounted installation
358 mm
Cutout dimensions in mm (depth) with surface-mounted installation
500 mm
Internal cutout dimensions in mm (width) with flush installation
358
Internal cutout dimensions in mm (depth) with flush installation
500
External cutout dimensions in mm (width) with flush installation
382
External cutout dimensions in mm (depth) with flush installation
524
Weight in kg
7
Total rated load in kW
4.400
Position of gas connection
Hinten links
Voltage in V
220 - 240
Frequency in Hz
50 - 60
Length of supply lead in m
1.4
CSFG 7000 FlameGuard
Mains cable
EAN
4002516306252

What's included

CSFG 7000 FlameGuard
Mains cable
  • Efficiently protects and makes cleaning easier
    Efficiently protects and makes cleaning easier

    ComfortClean pot rests

    Fast cleaning: remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

  • Flame failure monitor for maximum safety
    Flame failure monitor for maximum safety

    GasStop

    Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.

Maintenance

Efficiently protects and makes cleaning easier
Efficiently protects and makes cleaning easier

ComfortClean pot rests

Fast cleaning: remove the pot rests and wash in the dishwasher. Keeps gas hobs looking good for longer.

Safety

Flame failure monitor for maximum safety
Flame failure monitor for maximum safety

GasStop

Reassuring: if the flame is extinguished, for example by a draught, the continued supply of gas is prevented.

User convenience

Easy ignition of the flame
Easy ignition of the flame

Electronic ignition with single-handed operation

No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.

Design

Design in detail
Design in detail

Metal knobs

Perfect convenience: the gas elements can be intuitively operated via high-quality metal knobs.

Downloads

Operating instructions/Installation instructions
PDF
Download
Product sheet
PDF
Download
Warranty conditions
PDF
Download
dwg
ZIP
Download
fbx
ZIP
Download
ifc
ZIP
Download
rfa
ZIP
Download
rvt
ZIP
Download

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000013/200001320/20000132003.png
Descriptions
CS7102FL, CS7102-1FL flush (installation drawing)
1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Stepped cut-out, 4) Wooden frame 12 mm (supplied loose), 5) Gas connection 1/2 - ISO 7-1 (DIN EN 10226)
POSTSCRIPT
Download
https://media.miele.com/images/2000013/200001320/20000132004.png
Descriptions
CS7102FL, CS7102-1FL (installation drawing)
1) Front, 2) Mains connection box with mains connection cable, L = 2000 mm, 3) Gas connection 1/2 - ISO 7-1 (DIN EN 10226)
POSTSCRIPT
Download
https://media.miele.com/images/2000013/200001326/20000132666.png
Descriptions
CS 7000 FL (Installation drawing)
CS 7000 FL (Installation drawing)
POSTSCRIPT
Download
https://media.miele.com/images/2000013/200001355/20000135550.png
Descriptions
CS 7000 FL, flush (Installation drawing)
*7+0,5 = CS7611 (Wok)
POSTSCRIPT
Download

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
