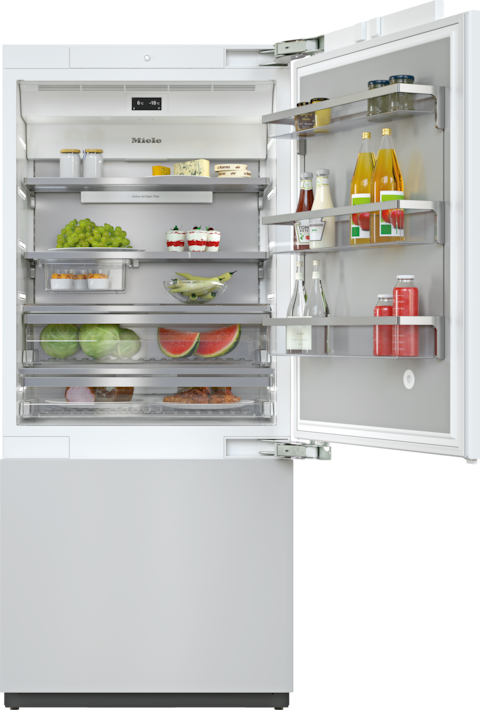

MasterCool fridge-freezerDIAMOND
KF 2901 Vi
For high-end design and technology on a large scale.sale priceINR1,799,990.00
Product details
- Push2openfor convenient door-opening assistanceLoading...
- Food stays fresh for up to 3 x longer thanks toMasterFreshLoading...
- Light floods the interior thanks to LED elements –BrilliantLightLoading...
- Communication with appliances couldn't be easier –WiFiConn@ctLoading...
- Convenient control thanks to colour touch displayMasterSensorLoading...
- View manufacturer details:
- Safety Information
Model identifier KF 2901 Vi
Manufacturer material number 11188580
EAN number 4002516154679
Marketing class Diamond
Loading...
Fridge-freezer
Built-in appliance
Integrated appliance
Door hinge right
Convertible door hinging
Side-by-side enabled
Loading...
Lighting BrilliantLight
Loading...
Networking with Miele@home
Loading...
Freshness system MasterFresh
Loading...
DynaCool
Loading...
NoFrost
DuplexCool Pro
Loading...
SoftClose
Loading...
SelfClose
IceMaker with mains water connection
Loading...
Push2open
Loading...
FullAccess
EasyClean
MaxLoad hinge
Loading...
Operating concept MasterSensor
Loading...
Independent temperature regulation of fridge and freezer zones
SuperCool
No. of temperature zones 3
Sabbath mode
Eco mode
Height-adjustable, full-width tempered glass shelves 2
No. of crisper drawers 2
SlidingShelf
Door shelves for jars 1
Door rack for bottles 2
Number of freezer baskets 2
Lock function
Spill-proof glass shelves
Loading...
Acoustic door alarm
Acoustic temperature alarm
Optical door alarm
Optical temperature alarm
Niche width in mm min. 914
Niche width in mm max. 918
Niche height in mm min. 2134
Niche height in mm max. 2164
Niche depth in mm 629
Appliance dimensions (W x H x D) in mm 908 x 2127 x 610
Appliance width in mm 908
Appliance height in mm 2127
Appliance depth in mm 610
Weight in kg 198.1
Door hinge technology Fixed door
Max. door front weight – refrigerator, in kg 40
Max. door front weight – freezer, in kg 10
Climate class SN-T
including PerfectFresh zone in l 34
Total usable capacity in l 505
Storage time in case of fault in h 17
Sound emissions in dB(A) re 1 pW 42
Current consumption (mA) 3000
Voltage in V 220-240
Fuse rating in A 10
Number of phases 1
Frequency in Hz 50-60
Length of supply lead in m 3
Replacing lamps Service
Active AirClean filter
Available display languages via MultiLingua [
"română",
"繁體中文",
"latviesu",
"english",
"slovenščina",
"svenska",
"日本語",
"polski",
"italiano",
"bahasa malaysia",
"español",
"ελληνιкά",
"yкраїнська",
"suomi",
"eesti",
"english (CA)",
"english (AU)",
"slovenčina",
"norsk",
"français",
"pусский",
"العربية",
"français (CA)",
"中文",
"한국어",
"hrvatski",
"magyar",
"lietuviu",
"nederlands",
"english (US)",
"deutsch",
"français (FR)",
"türkçe",
"dansk",
"čeština",
"english (GB)",
"português",
"srpski"
]
EAN 4002516154679
Active AirClean filter
Ice cubes for cold drinks
MasterCool - IceMaker
Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.
Cleverly networked
Miele@home1,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
Defrosting is a thing of the past
MasterCool – NoFrost
Convenient: a sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.
Perfectly lit
MasterCool – BrilliantLight
Soft and attractive: high-quality LED strips offer perfect illumination and a beautiful lighting mood.
Protective storage for long-lasting freshness
MasterCool – MasterFresh
Ideal climate: food stays fresh for up to 3 times longer due to perfect temperature and humidity.
The perfect solution for a handleless design
MasterCool – Push2open
This unique appliance integrates perfectly into handleless kitchens, as the door opens when you press the front.
MasterCool – Active AirClean filter
Unadulterated aroma: the combination of active charcoal and natural chitosan effectively prevents odours.
MasterCool – MaxLoad hinges
Strong and robust: the door hinges are able to withstand high loads and make it easy to open large doors.Miele@home1,
Make your life smart: thanks to Miele@home, you can cleverly network your domestic appliances – for more options.
MasterCool – DuplexCool Pro
Better storage: separate cooling circuits for the refrigerator and freezer prevent drying out and odour transfer.MasterCool – NoFrost
Convenient: a sophisticated NoFrost system saves you the hassle of defrosting and cleaning the appliance.
MasterCool – DynaCool
Storage freedom: a fan ensures a uniform temperature throughout the entire unit.
MasterCool – MasterSensor
Convenient operation: numerous settings can be configured with the tap of a finger.MasterCool – BrilliantLight
Soft and attractive: high-quality LED strips offer perfect illumination and a beautiful lighting mood.MasterCool – Push2open
This unique appliance integrates perfectly into handleless kitchens, as the door opens when you press the front.MasterCool - IceMaker
Produced quickly and stored: The IceMaker, which can be controlled separately, produces up to 150 ice cubes per day.MasterCool – MasterFresh
Ideal climate: food stays fresh for up to 3 times longer due to perfect temperature and humidity.Downloads
Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!
Descriptions
Opening angel 90°/115°, right side stop, MasterCool (Sketch) *footnote
A) Appliance door width, K 2601 Vi, K 2601 SF, KWT 2601 Vi, KWT 2601 SF, KWT 2661 ViS, KWT 2661 SFS: 677 mm (26 2/3 , inch);, K 2602 Vi, K 2602 SF, KWT 2602 Vi, KWT 2602 SF, KWT 2662 ViS, KWT 2662 SFS: 677 mm (26 2/3 , inch);, K 2801 Vi, K 2801 SF, KF 2801 Vi, KF 2801 SF: 829 mm (32 2/3 inch);, K 2802 Vi, K 2802 SF, KF 2802 Vi, KF 2802 SF: 829 mm (32 2/3 inch);, K 2901 Vi, K 2901 SF, KF 2901 Vi, KF 2901 SF: 982 mm (38 2/3 inch);, K 2902 Vi, K 2902 SF, KF 2902 Vi, KF 2902 SF: 982 mm (38 2/3 inch);, B) Furniture front (max. 38 mm) (1 1/2 inch), C) Door handle, D) Distance door to wall (without furniture front and door handle): , K 2601 Vi, K 2601 SF, KWT 2601 Vi, KWT 2601 SF, KWT 2661 ViS, KWT 2661 SFS: 296 mm (11 2/3 , inch);, K 2602 Vi, K 2602 SF, KWT 2602 Vi, KWT 2602 SF, KWT 2662 ViS, KWT 2662 SFS: 296 mm (11 2/3 , inch);, K 2801 Vi, K 2801 SF, KF 2801 Vi, KF 2801 SF: 363 mm (14 1/3 inch);, K 2802 Vi, K 2802 SF, KF 2802 Vi, KF 2802 SF: 363 mm (14 1/3 inch), K 2901 Vi, K 2901 SF, KF 2901 Vi, KF 2901 SF: 428 mm (16 7/8 inch), K 2902 Vi, K 2902 SF, KF 2902 Vi, KF 2902 SF: 428 mm (16 7/8 inch), E) ONLY valid for SF versions: A + 25 mm (1 inch) POSTSCRIPT
Descriptions
Side-by-side, MasterCool, without partition wall, with heating mat (Sketch) (with footnote)
1) Heating mat KSK 2001 (EU, AUS, CN) or KSK 2002 (US, CA, MX, BR) POSTSCRIPT
Descriptions
KF2902Vi, KF2912Vi, KF2901Vi, KF2911Vi, installation, MasterCool, installation drawings
KF2902Vi, KF2912Vi, KF2901Vi, KF2911Vi, installation, MasterCool, installation drawings POSTSCRIPT
Descriptions
KF2901Vi/SF, KF2911Vi/SF, KF2801VI/SF, KF2811Vi/SF, KF2981Vi/SF, sideview, MasterCool, installation drawings
KF2901Vi/SF, KF2911Vi/SF, KF2801VI/SF, KF2811Vi/SF, KF2981Vi/SF, sideview, MasterCool, installation drawings POSTSCRIPT
Descriptions
Side-by-Side, MasterCool, footnote, installation drawings
1. KSK 2001/2002, 2. Device A, 3. Device B, A = niche device A, B = niche device B POSTSCRIPT
Descriptions
KFP3615ed/cs, KFP3625ed/cs, KFP3614ed/cs, KFP3624ed/cs Front panel, Front dimensions, MasterCool, installation drawings
KFP3615ed/cs, KFP3625ed/cs, KFP3614ed/cs, KFP3624ed/cs Front panel, Front dimensions, MasterCool, installation drawings POSTSCRIPT
Descriptions
1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000mm (not for KON USA), 4. No water/ELT conections permitted in this area
1. View from the front, 2. Mains Connection cable, L = 3000 mm (118 inch), 3. Water inlet positon, L = 2000mm (not for KON USA), 4. No water/ELT conections permitted in this area POSTSCRIPT
Open Source Licence
DownloadsPDF
