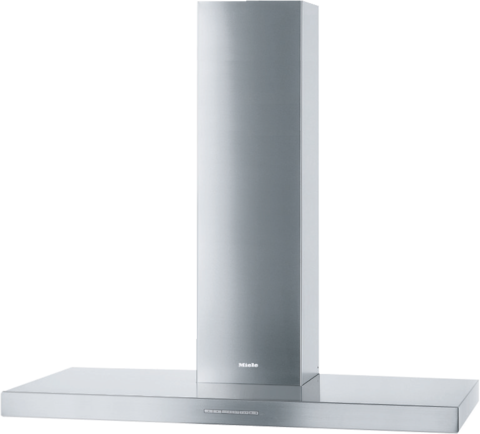

Wall mounted cooker hoodGOLD
DA 4228 W Puristic Plus Stainless steel
with energy-efficient LED lighting and light-touch switches for easy use.Colour:Stainless steel
sale priceINR321,990.00
Product details
- Timeless design – stainless steel canopy 1198 mm wide
- Unique user convenience –Con@ctivityLoading...
- Powerful – 630 m3/h in Booster level
- Pleasantly quiet –Miele Silence packageLoading...
- Safe and easy to clean -Miele CleanCoverLoading...
- View manufacturer details:
- Safety Information
Model identifier DA 4228 W Puristic Plus
Manufacturer material number 10749560
EAN number 4002515935750
Marketing class Gold
Loading...
Wall mounted cooker hood
Type of air guide Exhaust air
Colour Stainless steel
Miele@home
Con@ctivity Yes
Electronic controls
Controls Light-touch switches with LEDs
Miele@mobile app
Power levels (number without Booster level) 3
Booster levels 1
Run-on time 5/15 min.
Loading...
Grease filter saturation indicator
Silence package
Loading...
Easy-to-clean canopy interior – CleanCover
Loading...
Energy efficiency class (A+++ to D) A++
Annual energy consumption in kWh/year 28.8
Fluid dynamic efficiency class A
Loading...
Lighting efficiency class A
Loading...
Grease filtering efficiency class A
Loading...
ECO motor (DC motor)
Loading...
PowerManagement system
Loading...
Number of dishwasher-safe stainless steel grease filters (10-ply) 4
Loading...
Number x W 3 x 3 W
Light intensity in Lx 440 lx
Colour temperature in K 3500 Kelvin
Dimmer function
Dual-action blower
Air throughput in Level 1 (m³/h) according to EN 61591 190
Air throughput in Level 2 (m³/h) according to EN 61591 290
Air throughput in Level 3 (m³/h) according to EN 61591 390
Air throughput in Booster level 1 (m³/h) according to EN 61591 630
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 36
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 45
Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 52
Sound power in Booster level 1 (dB(A) re 1 pW) acc. to EN 60704-3 64
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 21
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 30
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 37
Sound pressure in Booster level 1 (dB(A) re 20 µPa) acc. to EN 60704-2-13 49
Safety shut-off
Loading...
Canopy dimensions (W x H x D) in mm 1198 x 62 x 500
Overall height for vented and external in in. (mm) 685
Overall height for extraction mode and external mode cooker hoods in mm 1005
Canopy width in in. (mm) 1198
Canopy height in in. (mm) 62
Depth of hood canopy in in. (mm) 500
Minimum height above electric hobs in mm 450
Loading...
Minimum safety distance above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm 650
Loading...
Net weight in kg 27
Length of supply lead in m 1.5
Standard plug fitted
Total rated load in kW 0.089
Voltage in V 230
Fuse rating in A 10
Frequency in Hz 50
Number of phases 1
Extraction ducting connection at top
Diameter of extraction ducting connection in mm 150
Telescopic chimney
Loading...
Combination with WiFi-enabled Miele hob recommended
Loading...
Non-return flap
Loading...
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
EAN 4002515935750
Non-return flap
Adapter to reduce ducting diameter from 150 mm to 125 mm Ø
Automatic operation for intelligent fan control
Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Performance and convenience as standard
Silence
Efficient and quiet: the fan is effectively insulated with special soundproofing mats.
Convenience and safety in detail
Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
The heart of every cooker hood
ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
Stainless steel grease filters (10-layer)
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.Silence
Efficient and quiet: the fan is effectively insulated with special soundproofing mats.Miele CleanCover
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Safety switch-off
Sensible, even in case of operating errors: the cooker hood switches off automatically after 10 hours.ECO motor
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.Con@ctivity
Innovative convenience: the cooker hood reacts automatically to settings on the hob.
Run-on function
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Filter indicator
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.Downloads
