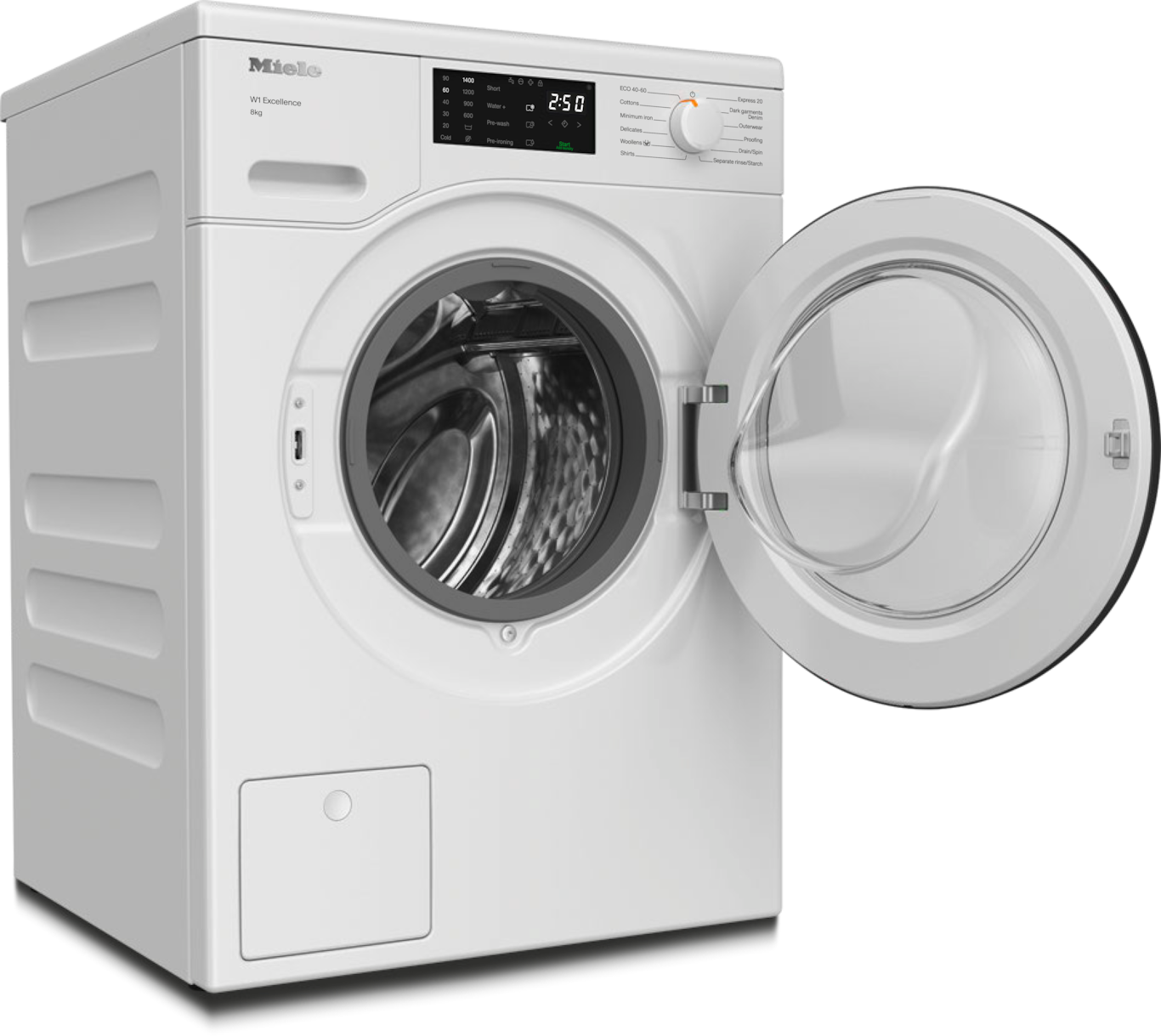

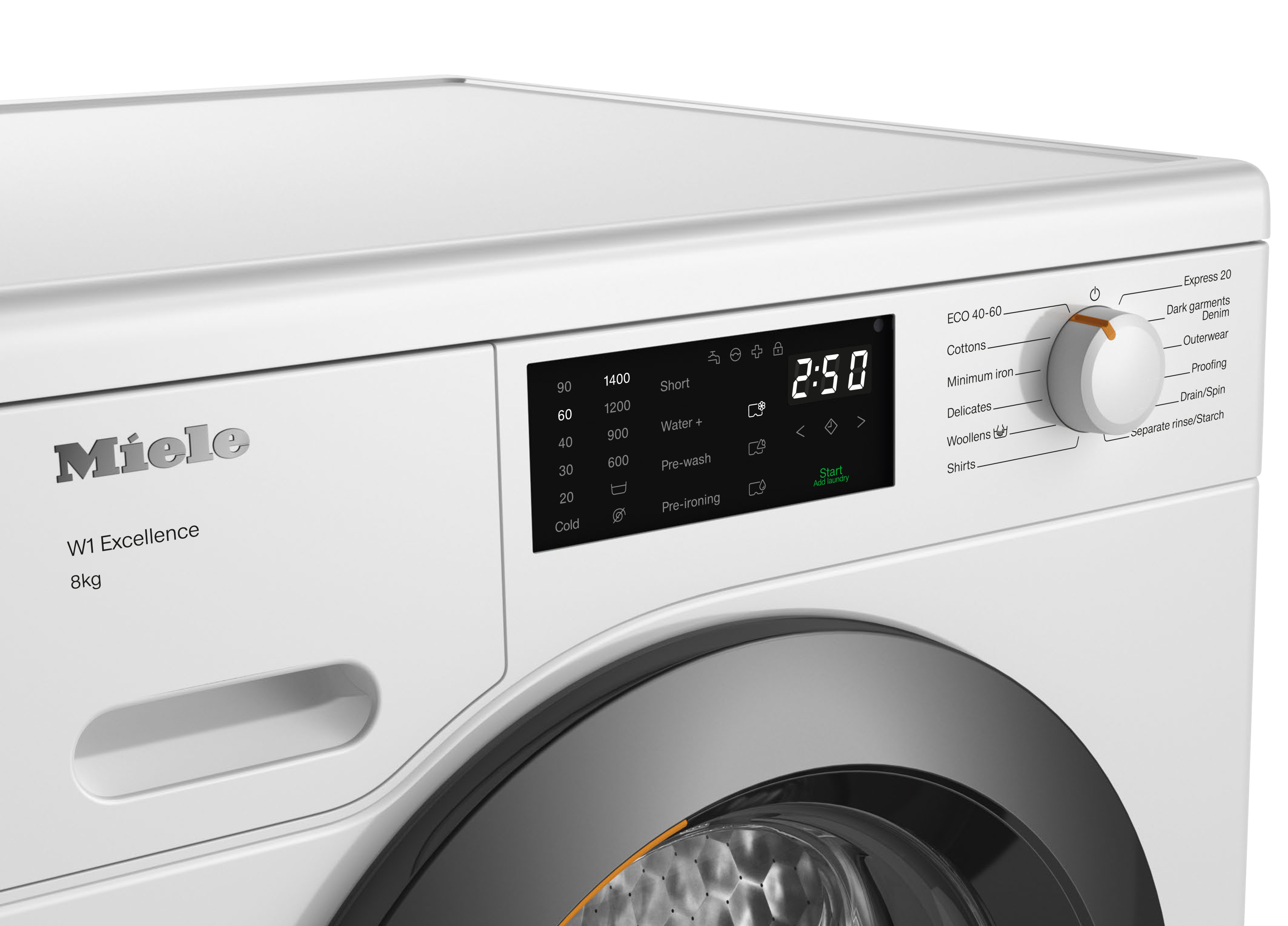

W1 front-loader washing machine:

WED025 WCS 8kg

A I 8 kg I 1400 rpm I Pre-ironing I CapDosing I honeycomb drum


Product details

  • Tested for
    20 years
    of perfect laundry care1,
  • Save energy in the best energy efficiency class (A)
  • The
    Pre-ironing
    Extra reduces creasing, saving up to 50 % time and effort4,
  • Exclusive
    CapDosing
    range for different fabrics and stains3,
  • Our
    honeycomb drum
    ensures that laundry stays in perfect condition
  • View manufacturer details:
  • Safety Information

Product data sheet

Model identifier WED025 WCS 8kg
Manufacturer material number 11810580
EAN number 4002516465881
Suitable for stacking
Side-by-side
Slot-in
Can be built-under
Door hinge right
Product brand W1 Chrome Edition
Front-loader
Max. spin speed 1400
Rinse hold
Without spin function
Appliance colour Lotus white
Control panel colour Lotus white
Door design Graphite grey PearlFinish
Rotary selector colour Lotus White
Control panel version Straight
Control type Rotary control
Display DirectSensor white, 7 segment
CapDosing portioned dispensing
Honeycomb drum
Load in kg 8
Delay start up to 24 hours
Time left display
AutoClean detergent drawer
AddLoad
Energy efficiency class (A–G) A
Weighted energy consumption per 100 operating cycles for the wash cycle in kWh 47
Weighted water consumption per cycle in l 47
Spin efficiency class (A–G) B
Acoustic airborne noise emission class (spin cycle; A–D) A
Sound emissions during spin cycle in dB(A) re 1 pW 72
Duration of the “ECO 40–60” programme at nominal capacity 219
Power rating in off mode in W 0.30
Low temperature wash "Cold" and "20 °C"
Automatic load control
Foam sensing
ProfiEco motor
Cottons (coloureds)
Minimum iron
Delicates
Shirts
Woollens (hand-washable)
Express 20
Dark garments / Denim
Outerwear
Proofing
Separate rinse/Starch
Drain / Spin
ECO 40-60
Short
Pre-wash
Water plus
Additional rinse cycle
Pre-ironing with steam
Buzzer
Water protection system Watercontrol-System
Safety lock
PIN-Code
Optical interface
Dimensions in mm (width) 596
Dimensions (H x W x D) in mm 850 x 596 x 636
Dimensions in mm (height) 850
Dimensions in mm (depth) 636
Appliance depth in mm with opened door 1054
Appliance depth w/o door in mm 600
Weight in kg 80
Total rated load in kW 2.100-2.400
Voltage in V 220-240
Fuse rating in A 13
Frequency in Hz 50
Length of water inlet hose in m 1.60
Length of water drain hose in m 1.50
Length of supply lead in m 2
Available display languages via MultiLingua [ "español", "繁體中文", "한국어", "中文", "english (GB)", "日本語", "português", "english (AU)", "deutsch", "bahasa malaysia" ]
EAN 4002516465881
  • Tested for 20 years of perfect laundry care

    Tested for 20 years of perfect laundry care

    Tested for the equivalent of 20 years’ use1,

    Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.

  • Convenient and eco-friendly dispensing

    Convenient and eco-friendly dispensing

    CapDosing portioned dispensing3,

    Easy and sustainable: optimum dispensing of special detergents, fabric conditioners and additives with CapDosing.

Washing programs

Optimum care of synthetic fibres
Optimum care of synthetic fibres

Delicates

Gentle & soft: with the special programme synthetic textiles stay beautiful & keep their shape.
Most gentle treatment of your favourite garments
Most gentle treatment of your favourite garments

Woollens

No shrinkage, no felting: Delicate wool fabrics are cared for particularly gently, maintaining their quality.
Business as usual
Business as usual

Shirts

Prevents creasing: reduces creasing and simplifies the ironing of shirts and blouses significantly.
Special programme for high-tech materials
Special programme for high-tech materials

Outerwear

Best care without the loss of function: High-quality outdoor textiles retain their functionality in any weather.
Equip textiles with functions
Equip textiles with functions

Proofing

Best possible effect: Thermally fixing ensures optimum water-repellent properties.

Quality

Tested for 20 years of perfect laundry care
Tested for 20 years of perfect laundry care1,

Tested for the equivalent of 20 years’ use1,

Some car engines are subjected to 3000 hours of tests, but we test continuous performance for up to 10,000 hours.1,

Gentle laundry care

Keep your clothing safe while tumbling
Keep your clothing safe while tumbling

Honeycomb drum

Our protective drum allows fabrics to safely glide along without snagging and damaging them.
Up to 50 % less ironing
Up to 50 % less ironing

Pre-ironing with steam

50 % less need for ironing – smoothing after a wash programme.

Safety

Safety thanks to an additional sensor
Safety thanks to an additional sensor

Water Control System (WCS)

WCS monitors the water intake, detects leakages and water in the floor tray.

Efficiency

Intelligent washing
Intelligent washing

Automatic load recognition

Intelligent adjustment: low load, less water and electricity consumption. Fully automatically.
Economical, powerful and maintenance-free
Economical, powerful and maintenance-free

ProfiEco motor2,

Our efficient motors with inverter drive feature technology that ensures minimal wear, noise, and energy usage.

User convenience

Add or remove single items
Add or remove single items

AddLoad

Enjoy the flexibility to add or remove individual items during a washing cycle, without cancelling the programme.

Cleaning performance

Convenient and eco-friendly dispensing
Convenient and eco-friendly dispensing

CapDosing portioned dispensing3,

Easy and sustainable: optimum dispensing of special detergents, fabric conditioners and additives with CapDosing.

Matching products and accessories

Washer-dryer stacking kit

Washer-dryer stacking kit

For space-saving and safe installation of a washer-dryer stack.

INR9,090.00
Washer-dryer stacking kit

Washer-dryer stacking kit

For space-saving and safe installation of a washer-dryer stack.

INR9,090.00
Descaler 250 g

Descaler 250 g

Removes harmful limescale deposits from dishwashers and washing machines.

INR1,590.00
IntenseClean – 200 g appliance cleaner

IntenseClean – 200 g appliance cleaner

For hygienic cleanliness in dishwashers and washing machines

INR1,690.00

Downloads

Product sheet
PDF
Downloads
Warranty conditions
PDF
Downloads
dwg
ZIP
Downloads
fbx
ZIP
Downloads
ifc
ZIP
Downloads
rfa
ZIP
Downloads
rvt
ZIP
Downloads

Whether you are looking to replace an appliance or plan a new kitchen – you will find all the relevant installation drawings for your Miele appliance here. Please note that our products should only be installed and maintained by authorised experts. In the event of queries, please ring us for some no-obligation advice!

https://media.miele.com/images/2000018/200001839/20000183968.png
Descriptions
W1 installation drawing, slanted facia or straight facia, measures in mm
W1 installation drawing, slanted facia or straight facia, measures in mm
POSTSCRIPT
Downloads
https://media.miele.com/images/2000018/200001839/20000183969.png
Descriptions
W1 drawing, slanted facia or straight facia, measures in mm
W1 drawing, slanted facia or straight facia, measures in mm
POSTSCRIPT
Downloads
https://media.miele.com/images/2000018/200001839/20000183970.png
Descriptions
W1 drawing, slanted facia or straight facia, measures in mm
W1 drawing, slanted facia or straight facia, measures in mm
POSTSCRIPT
Downloads
https://media.miele.com/images/2000018/200001839/20000183971.png
Descriptions
W1 drawing, slanted facia or straight facia, measures in mm
W1 drawing, slanted facia or straight facia, measures in mm
POSTSCRIPT
Downloads
  • 1.During the development phase of the W1 / W2 washing machine series, Miele tested models and core components in 5000 wash loads (= 5 wash loads per week for 50 weeks per year) in various programmes. More: miele.com/20years
  • 2.Patent EP 2 840 679
  • 3.Patent EP 2 365 120
  • 4.Patent EP 2 088 231

We reserve the right to make technical changes; we assume no liability for the accuracy of the information provided.
